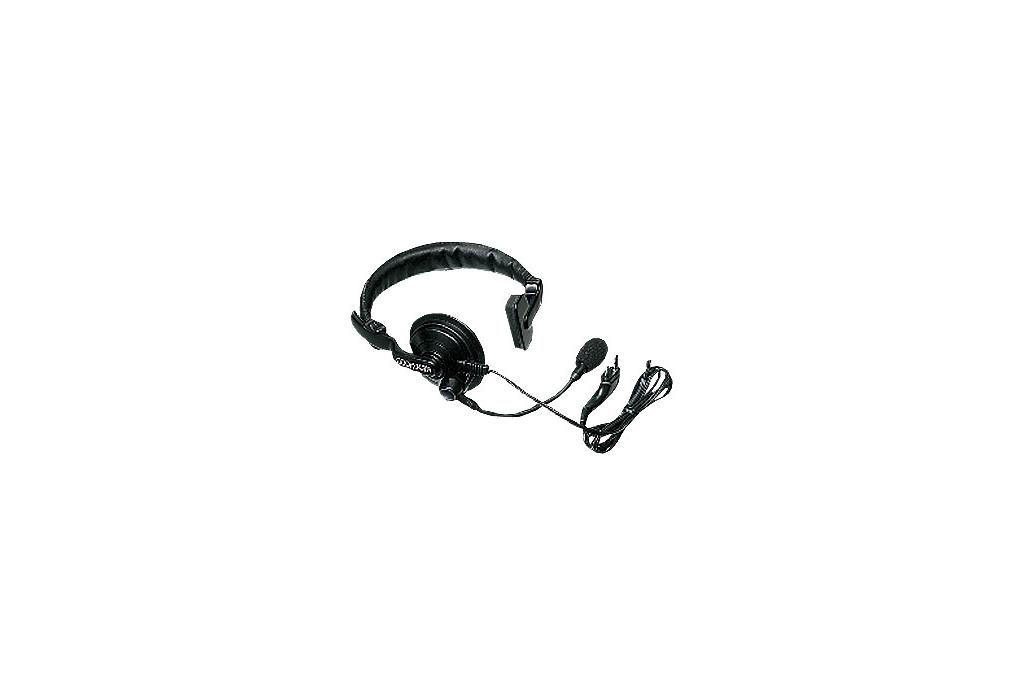

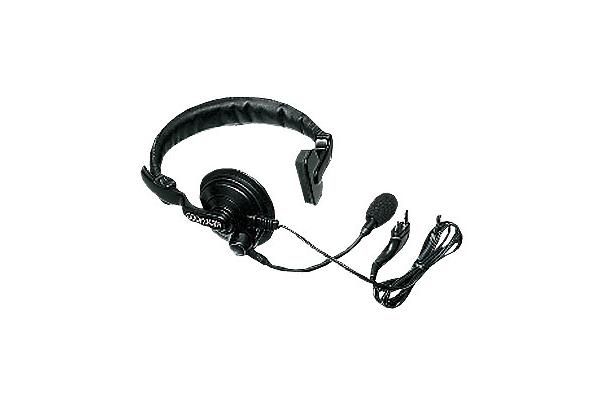

KHS-7

Single muff headset for VOX-equipped radios - no PTT switch

Find your nearest Approved Kenwood Centre
Where to Buy


Tweet

Key Features

Flexible boom with omni-directional microphone
- Adjustable headband
- Mic windscreen
- Speaker with cover
- 3.5mm jack, 4 contacts with screw retaine
Element type electret, omnidirectional frequency response Hz 300 3000
Microphone performance	Min	Typ	Max
- Sensitivity @ 1000 Hz dBV	-45.4	-41.4	-37.4
- Rated supply voltage volts 1.5 to 10
- Rated current drain Ta=25 C μA 500
Speaker performance	Min	Typ	Max
- Impedance @ 1000 Hz	174	205	236
- Output Level @ 300 Hz dB SPL	89.2	93.3	97.3
- Output Level @ 1000 Hz dB SPL	105.5	109.5	113.5
- Output Level @ 300 Hz dB SPL	99.7	103.7	107.7
- Frequency range Hz 300 3000
- Rated input power (continuous) watt 0.08
Environment Specifications
- Operating temp. C -30 to +75
- Storage temp. C -40 to +85
Replacement Parts:
- Microphone Windscreen
- “O” Ring and Speaker Cover
