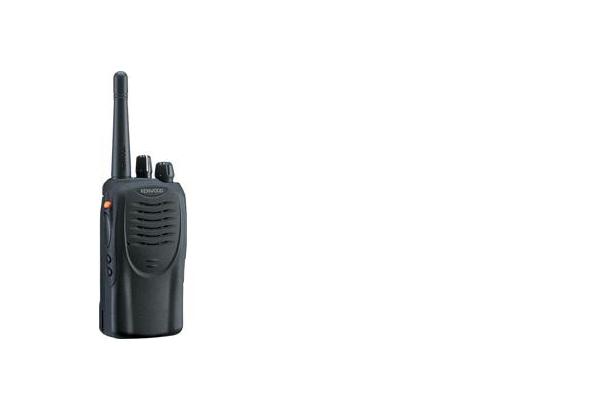

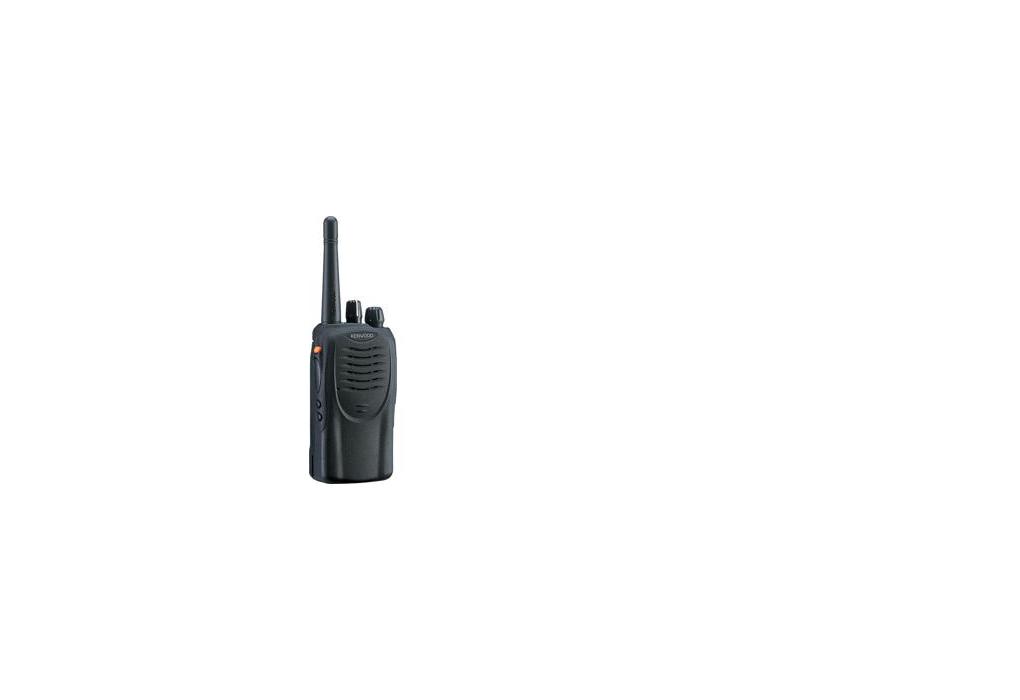

TK-3160E
Compact Synthesized UHF FM Portable Radio (EU use)
Discontinued model
Key Features
| Frequency Range: E Type 440-470 MHz
E3 Type 400-430 MHz |
| 16 Channels |
| 4 Watt RF Output |
| Built-In Voice Scrambler |
| Internal Options Boards |
| FleetSync Digital Signalling, PTT ID and SelCall |
| 5-Tone, QT and DQT Signalling |
| PC Programming |
PMR General Features
FleetSync Signalling Features
| Emergency Status | Yes |
| PTT ID Digital ANI | Yes |
| Selective Calling | Yes |
Applicable Standards
| RE Directive: EN300 086-2 | Yes |
| EN300 113-2 | Yes |
| EN300 219-2 | Yes |
| EN301 489-5 | Yes |
| EU Safety: EN60065 | Yes |
| EU Safety: EN60215 | Yes |
| EU Safety: EN60950 | Yes |
| For use in the EU | Yes |
| IP54 | Yes |
| IP55 | Yes |
| Measurement - EN Standards | Yes |
| MIL-STD 810 F | Yes |
Technical Specifications
| Frequency Range - E Type | 440-470 MHz |
| Frequency Range - E3 Type | 400-430 MHz |
| Number of Channels | 16 |
| Channel Frequency Spread | 30 MHz |
| Channel Spacing | Wide: 25 kHz
Mid: 20 kHz (only "E Type") Narrow: 12.5 kHz |
| Antenna Impedance - 50 Ohm | Yes |
| Battery Life | With KNB-35L: 9 hours
With KNB-25A: 8 hours With KNB-26N: 12 hours - 5-5-90 duty cycle with battery saver off - |
| Battery Voltage | 7.5 V DC ± 20% |
| Frequency Stability | ± 2.5 ppm (-30 °C to + 60 °C) |
| Operating Temperature Range | -30 °C to + 60 °C |
| PLL Channel Steps | 5.0 kHz/6.25 kHz |
| Dimensions | Radio only:
56 x 109.30 x 18.40 mm With KNB-35L: 56 x 109.30 x 34.50 mm With KNB-25A: 56 x 109.30 x 40.70 mm With KNB-26N: 56 x 109.30 x 40.70 mm - Projections not included - |
| Weight (net) | Radio only: 165 g
With KNB-35L: 290 g With KNB-25A: 355 g With KNB-26N: 400 g |
Receiver Specifications
| Adjacent Channel Selectivity | 70 dB at 25 kHz
70 dB at 20 kHz (only "E Type") 62 dB at 12.5 kHz |
| Audio Output | 500 mW with less than 10% distortion |
| Circuitry - Double Conversion Superheterodyne | Yes |
| Intermodulation | 65 dB |
| Sensitivity - EIA 12 dB SINAD | 0.25 µV at 25 kHz
0.25 µV at 20 kHz (only "E Type") 0.32 µV at 12.5 kHz |
| Sensitivity - EN 20 dB SINAD | 0.63 µV at 25 kHz
0.63 µV at 20 kHz (only "E Type") 0.70 µV at 12.5 kHz |
| Spurious Reponse Rejection (Analogue) | 70 dB |
Transmitter Specifications
| RF Power Output (High/Low) | 4 W / 1 W |
| FM Noise (EIA) | 45 dB at 25 kHz
43dB at 20 kHz (only "E Type") 40 dB at 12.5 kHz |
| Microphone Impedance | 2000 Ohm |
| Modulation Distortion | Less than 5% |
| Modulation Limiting | ± 5.0 kHz at 25 kHz
± 4.0 kHz at 20 kHz (only "E type") ± 2.5 kHz at 12.5 kHz |
| Spurious Emission (EN) | -36 dBm ≤ 1 GHz
-30 dBm > 1 GHz |
