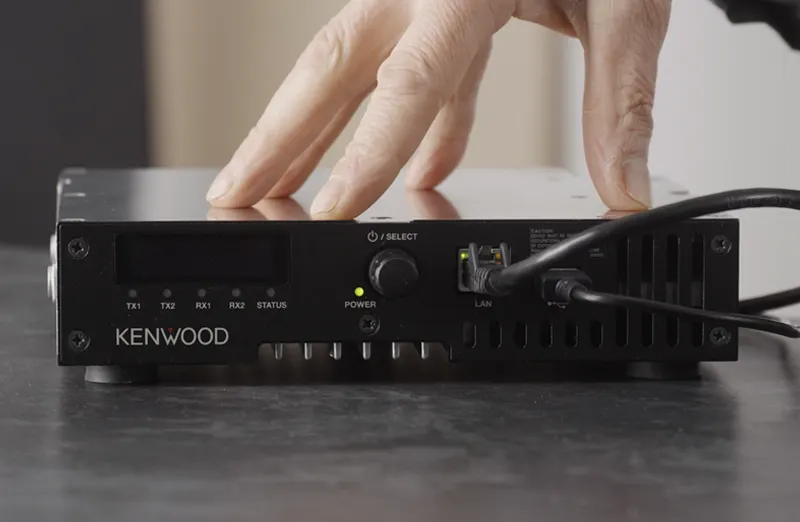

NXR-1700/1800 Compact Repeaters

Multi-Mode, Space-Saving Repeater Solution

The NXR-1700 VHF (NXR-1800 UHF) is a light, ultra-compact, multi-mode conventional repeater that offers features, flexibility and performance that make it ideal for users wishing to increase the range, capacity and capabilities of an existing FM Analogue system while also offering the option to migrate to digital operation at any time by simply asking your KENWOOD dealer to activate the appropriate DMR or NXDN license and configuring the radio accordingly.

Features include:

• 50/40* – 1 W RF Output Power (Up to 50/40* W@50%, 25 W@100% Duty Cycle) *(UHF models)
• Up to 32 Channels
• Clear 1.71-inch OLED Display
• Built-in IP Network Adapter
• IP Remote Management
• Multi-Site Conventional IP Network up to 16 Sites (for both Digital and FM Analogue) in Unicast mode / Unlimited (depends on IP backbone equipment) in Multicast mode (License Required - KWD-NX10MS)
• Flexible redundancy configuration (1+1 HSB)
• SIP phone interface (OP)
• KAS-20E AVL & Dispatch suite allows reception of Group Calls made from SIP Phones in NXDN and DMR Conventional mode

Additional Features
Voting Repeater/Receiver Feature Up to 15 units of Voting Receivers can be connected to one Voting Repeater.
RF Link Feature RF Link Feature transfers Inter-site Calls using RF (Radio Frequency), which is used when an IP network cannot be prepared for Inter-site communication.
Voice Logging The Voice Logging Interface (VLI) in digital mode allows packet transfer to a Voice Logger (3rd party voice record application).

Application System
NXDN Conventional DMR Tier II Conventional FM Analogue Conventional
NXDN Conventional DMR Tier II Conventional Analogue Conventional: The RF Link Repeater needs to use the Digital Channel; however, it can transfer Analogue Inter-site Calls (voice only) from the other repeaters.
NXDN Conventional DMR Tier II Conventional Note that the VLI specifications for the NXDN and DMR modes differ.

Digital - Common Features

• Built-in AMBE+2™ Vocoder
• Mixed Analogue/Digital Operation
• Site Roaming Using Beacon
• RF-Link: NXDN / DMR
• Repeat Encrypted Voice/Data (AES/DES/DMR Enhanced Encryption)
• User List / Site Group Table
• 1+1 Hot Standby redundancy

FM Analogue (License Included)
• FM Conventional Operation
• Multiple QT/DQT

Digital DMR (License Required - KWD-NX10DC)
• TDMA 2-slot 12.5 kHz bandwidth equivalent to 6.25 kHz very narrow bandwidth
• DMR Tier II Conventional Operation
• Call Interruption

Digital NXDN (License Required - KWD-NX10NC)
• FDMA – Very narrow 6.25 kHz & narrow 12.5 kHz bandwidths
• NXDN Conventional Operation
• Standalone and IP multisite configuration
• Radio Access Control
• Restricting the Use of Repeater with Access Control Key

• IP Firmware loader for multiple repeaters (FM Analogue, NXDN and DMR)
• Remote Control of Radio via IP Interface (IPRCI) for Analogue, NXDN and DMR
• Simple Network Management Protocol (SNMP) support for FM Analogue, NXDN and DMR
• Log acquisition and real-time status monitoring for FM Analogue, NXDN and DMR
• QoS Support with Differentiated Services Code Point (Analogue, NXDN and DMR)

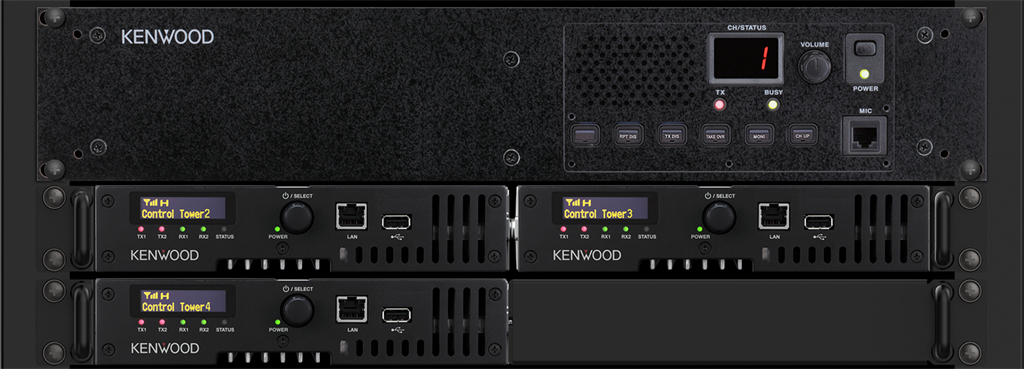

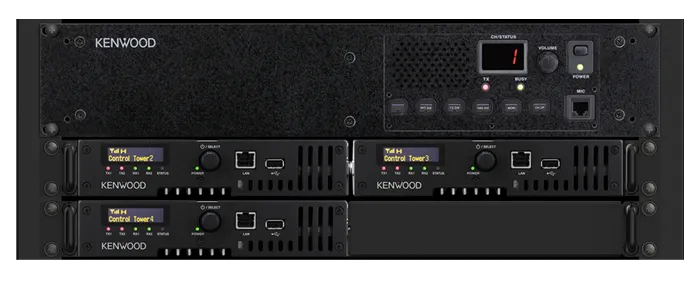

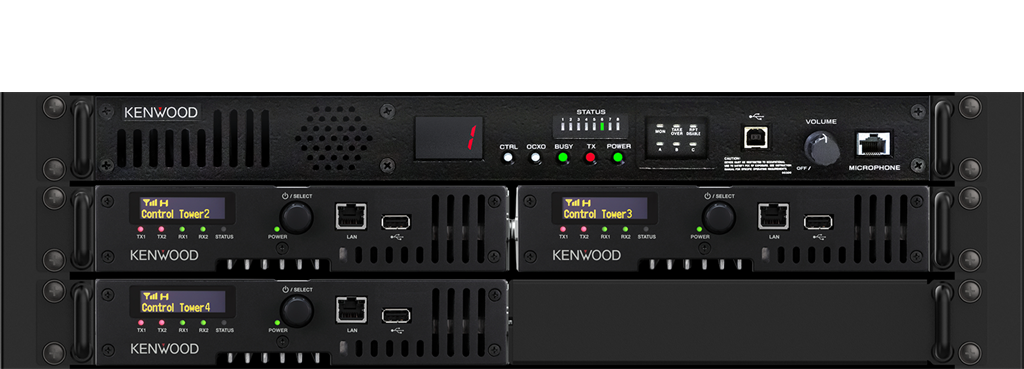

Light, Compact and Space Efficient

The NXR-1000 Series repeaters require only a quarter of the rack space compared to the NXR-710/810 or TKR-D710/810 Series models.

In addition, the NXR-1000 Series repeaters take up only half the rack space of other 1U repeaters that are 19-inch wide.

Orderly migration from FM Analogue to DMR or NEXEDGE NXDN Digital operation

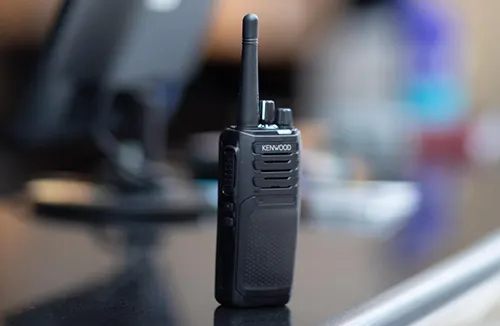

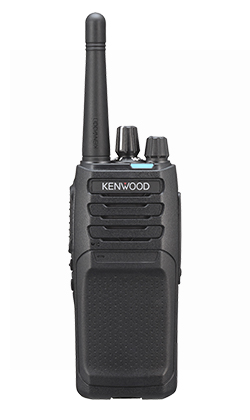

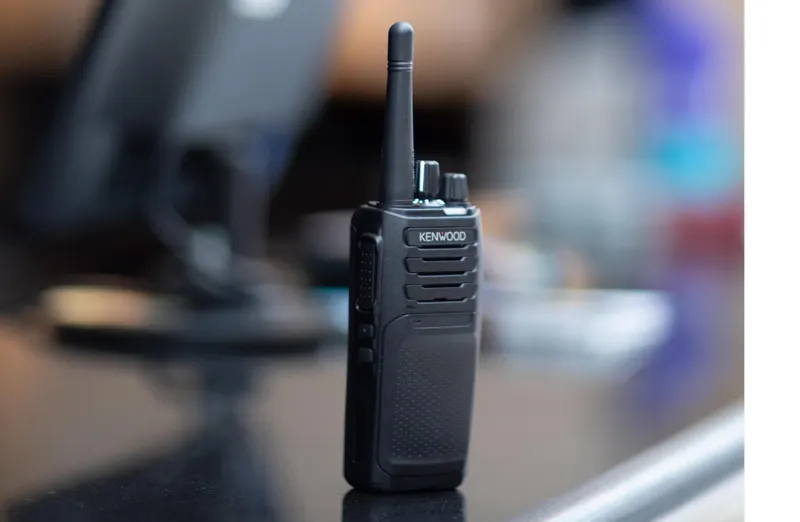

The NX-1200AE3 (VHF) and NX-1300AE3 (UHF) hand-portable radios are a perfect match to the NXR-1700/1800 repeaters. These entry-level hand-portable radios are supplied factory-programmed for FM Analogue operation but allow you to upgrade to either DMR + FM Analogue or NEXEDGE NXDN + FM Analogue formats at a time to suit your needs – making your investment in the NXR-1700/1800 repeater futureproof and the migration to the benefits of digital operation both orderly and cost-effective.
