Custom at Will
The two-way radio environment for retailers, companies and factories is often a mixture of digital and analogue FM, or only analogue FM. If you are considering which digital radio to adopt in the future. The NX-3000 Series offers future-proof flexibility with support for both NXDN and DMR digital air interfaces (included as standard) as well as FM analogue - all in a single radio. A desired digital protocol can be selected at will, giving you the freedom to migrate to digital or expand your digital environment further at your own pace. Also, it offers a unique capability to add or delete functions at will. |
 |
NXDN Digital Protocol
|
 |
Multi-Protocol NXDN
In addition to the narrow 12.5 kHz support, the NXDN protocol can fit into the very narrow 6.25 kHz bandwidth using FDMA technology. Ensuring excellent spectrum efficiency, wide coverage and high scalability, it provides expansion for not only statewide but also interstate: In addition to NXDN Conventional, NXDN Type-C Trunking and Gen 2 Trunking offer enhanced features, flexibility and performance, including the ability to link up to 1,000 sites. |
 |
DMR Digital Protocol
|
 |
Multi-Protocol DMR
Making use of existing infrastructure, DMR is an excellent, cost-effective solution for simple systems. Thanks to 2-slot TDMA, DMR can obtain 2 talk paths within 12.5 kHz bandwidth, effectively doubling the capacity for a single license and/or repeater. DMR Tier II (conventional) and Site Roaming are supported, as well as Tier III Trunking. |
 |
Multi-Protocol FM Analogue
FM analogue protocol is offered in 25 kHz* and narrow 12.5 kHz channel spacing. Conventional and LTR systems are offered including QT/DQT, DTMF 2-tone/ 5-tone, MDC-1200 and KENWOOD's own FleetSync® signaling**.
*Some limitations apply in certain regions when configuring wide channel spacing.
** Signalling availability varies depending on the region
|

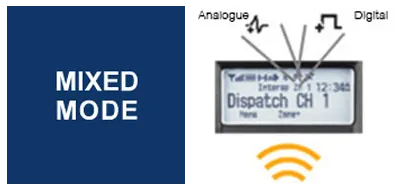

Mixed Digital & FM Analogue Operation
|
 |
For gradual migration at you own pace, the NX-3000 radios that are set to Mixed Mode will automatically respond to calls from either digital or FM analogue by indicating an icon on the LCD display.
|
Designed to Go with All Sizes and Shapes
|
 |

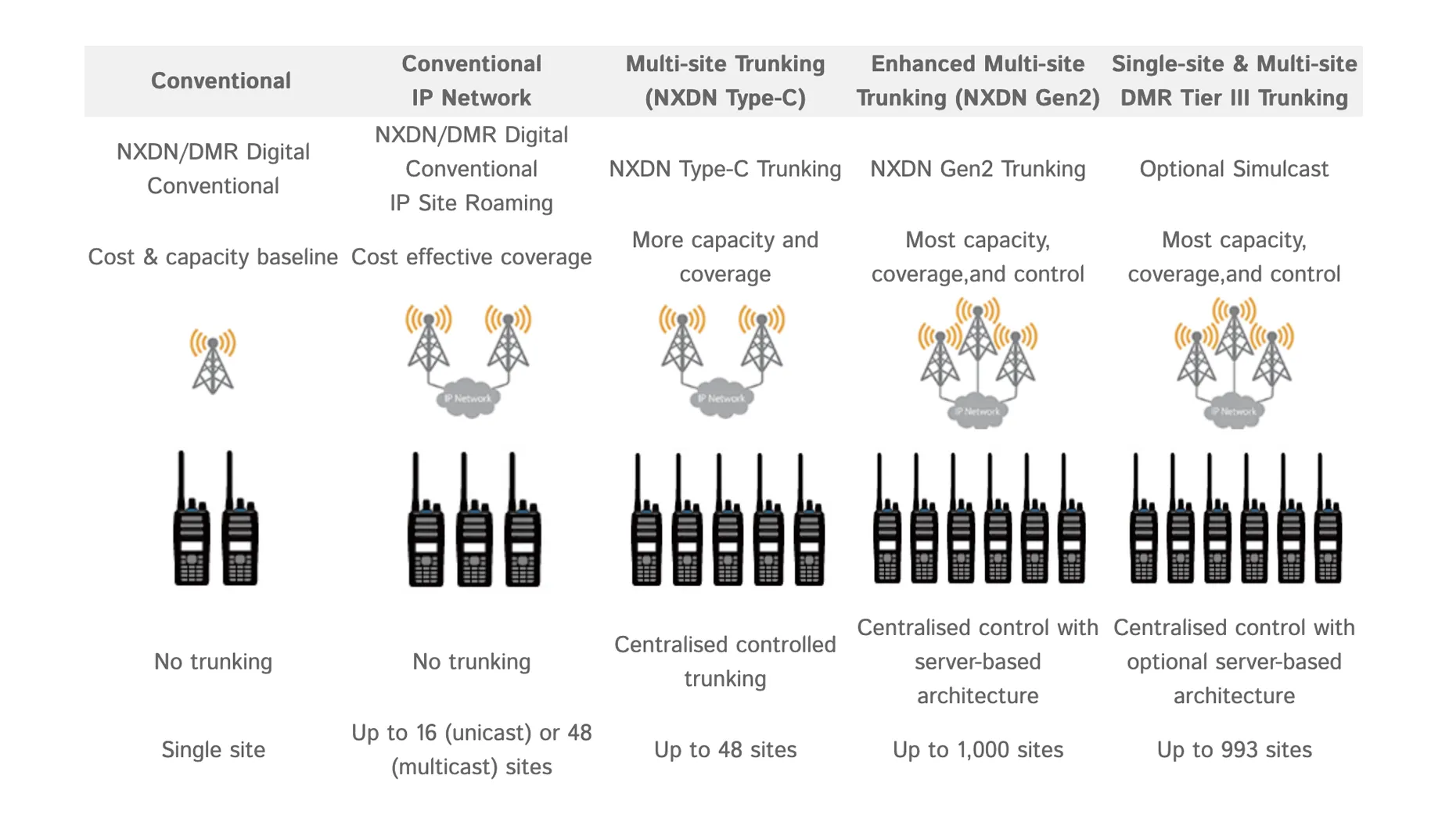

Capability to operate in digital protocol allows extending your channel capacity. The NX-3000 radios are designed to fit in different systems, from shopping mall or hospitality setting using conventional digital system in NXDN or DMR, to wider multi-site trunking systems using IP networking such as NXDN Type-C and Gen2 that extend across a campus or plant, even as wide as state/province or nationwide.
|
Lineup and Closer Look
- NX-3220 (VHF) / NX-3320 (UHF), 2-pin connector
- NX-3200 (VHF) / NX-3300 (UHF), 14-pin Universal connector*
*Product releases are not necessarily simultaneous
Model lineup
The NX-3000 Series portable radios are available in 3 configurations. From left are Full keypad, Standard keypad, and Basic (without LCD or Keypad) models.
1. SMA Antenna Connector
Thanks to the built-in GPS antenna, different antennas such as long whip and stubby types can be attached.
2. 7-color Light Bar Indicator
Each channel can be assigned a different colour from the seven available (green, light blue, blue, magenta, red, yellow and white) for at-a-glance notification of the caller.
3. Multi-line LCD with white backlighting
The channel name, status and text message appear on the model with LCD display.
4. 2-pin Connector (left) and 14-pin Universal Connector (right) Models*
NX-3000 Series portables are available in 2 different connectors; the Universal connector offers connectivity with a wider range of accessories.*
Key Accessories
KMC-54WD is a speaker microphone featuring 2-microphone system that supports ambient noise reduction (ANR), which discriminates between voice and noise.
- NX-3720 / NX-3720G / NX-3720H / NX-3720HG (VHF)
- NX-3820 / NX-3820G / NX-3820H / NX-3820HG (UHF)
Model lineup
Mobile radios come in 4 configurations; A base model (NX-3720/NX-3820), base model with built-in GPS and Bluetooth modules (NX-3720G/ NX-3820G), high-powered model (NX-3720H/ NX-3820H), and high-powered model with GPS and Bluetooth modules (NX-3720HG/ NX-3820HG).
1. 7-colour LED Indicator
Like the portable radios, the NX-3000 series mobiles also feature 7-color LED to indicate the caller by colour.
2. 8-pin microphone jack
Compatible with a wide range of current existing accessories.
3. Multi-line Full Dot Matrix LCD with white backlighting
The channel name, status, and text message appear on the LCD display.
4. Programmable function keys with backlighting
For easy operation even in the dark
Key Accessories
KMC-35 and KMC-36 are microphones for mobile radios that support dust and water ingress protection of IP54 and IP55, respectively.
