KAS-20E

AVL/Dispatch and Indoor Location Software

Scalable AVL/Dispatch Software which can track, locate, and manage subscriber units and fleets, both indoors and outdoors. For NXDN and DMR digital protocols and radio systems, Conventional and Trunking mode, including DMR Trunking 2.5.

Find your nearest Approved Kenwood Centre
Where to Buy


Tweet

Key Features

1. Dispatch – Windows-based software to start a dispatch system for fleet management and businesses from retail to healthcare by controlling multiple subscriber units on the multiple networks.

AVL – simple or multi-client automatic vehicle location or AVL system can be created that can be scaled to meet diverse user requirements from transportation and logistics to public works.

3. Indoor Location – the latest indoor location license using Bluetooth® technology can locate radios on a map by transmitting BLE Data from a beacon and to a BT Gateway installed in the building.

Flexible and scalable: Low-cost initial package is upgraded by adding user-selectable optional licenses.

Dispatcher can choose to monitor same or different audio received from left and right speakers using Selected Tile or Unselected Tiles.

6. Supports diverse digital radio systems & IP interfaces including DMR and NXDN Conventional & Trunking and DMR Trunking 2.5.

Server stores all communications log and data (e.g. GPS, status, messages, audio, etc.)

Server managed user levels, configurations, permissions: register up to 30 users with 10 simultaneous logins.

Import/export asset lists such as unit, group, and fleet via TSV format; Manual/auto asset list creation.

Software Basic Features

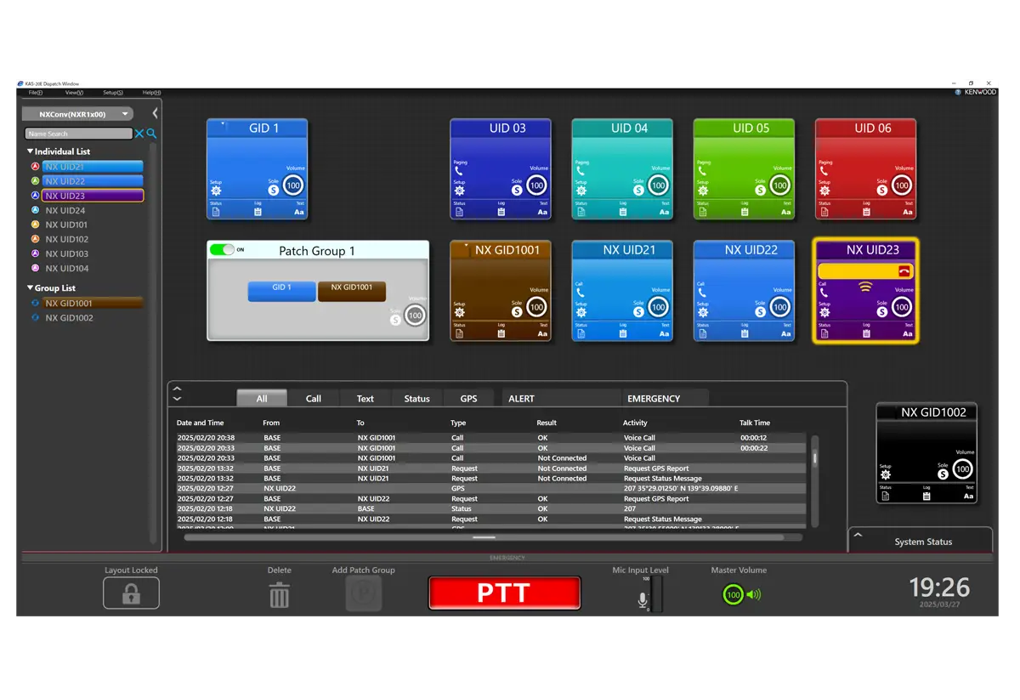

Multi-role dispatching functions
- IP Voice dispatch console
- AVL, fleet monitoring and mapping
- Call log and Event sharing
- Voice recording/playback

Supports multiple KENWOOD IP interfaces: DMR Conv, NXDN Conv, Type-C and Gen2 Trunking, DMR TIII and DMR 2.5 Trunking

Highly optimized GUI:
- Emphasis on maneuverability and functionality
- User-configurable call and patch windows
- Shortcut keys and configurable key bindings
- Map with editable unit icons, groups, and imported layers

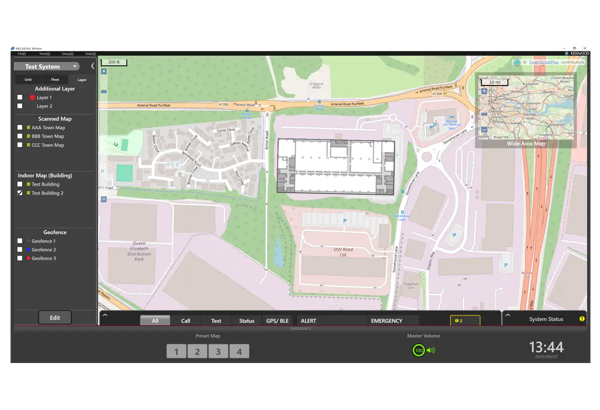

- Track working radios right on the Building Floor Map
- Compatible with OpenStreet Map and scanned maps, support for Google Earth

– Floating windows for Dispatch, AVL and Indoor Location
- Switch image layers on/off via Additional Layer Window
- Image layers can be individually switched on or via Additional Layer Window

Server managed user levels, configurations and permissions.
Up to 30 users can be registered with 10 simultaneous logins.

Server stores all communications log and data (e.g. GPS, status, messages, audio, etc.)

Import/export asset lists such as unit, group, and fleet via TSV format

Manual/audio asset list creation

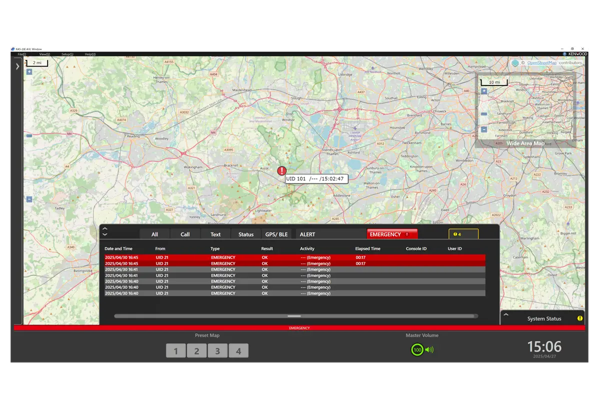

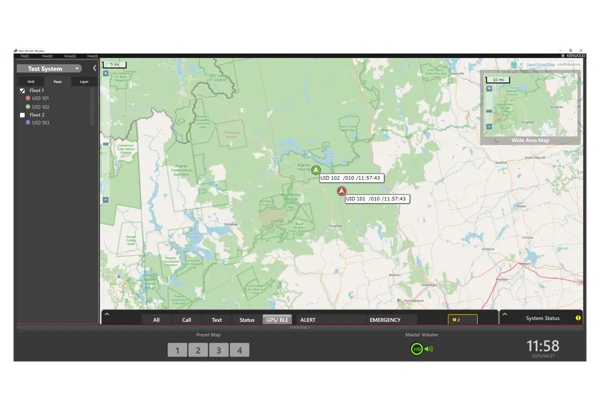

Software AVL/Dispatch

Location Management for up to 1,500 subscriber units

Auto & manual polling, Lone worker, GPS time mark, Geo Fencing, Track units, Go to home position, etc.

Position log & play

Multi-role dispatching functions including IP Voice dispatch console, AVL/Fleet monitoring and mapping, Call log/event sharing

Exports logs to TSV format

Save GPS data to KML format for Google Earth use

3 configurable software patch group

Configurable Call Box window: put any individual, talk group, or console with priority; Adjustable volume / mute per call box; UID / alias indicator; and Configurable colour and size

Geo Fencing, Map display of terminal in emergency, Text messaging, Status messaging, Stun/Kill, Exporting of communications log, positional data, Display of communication logs (Call log and Message log), Indoor and Outdoor maps, Auto polling, and Voice dispatching

Scrambler, DES 56 encryption for NXDN and DMR and ARC4 encryption for DMR mode

Software Voice Recording/Playback

Console to: Unit, Talkgroup / Channel, Console calls

Soft vocoder: simultaneous processing up to 8 paths

Voice recording and playback: stores all voice in AMBE+2, plays back from log window, and exports voice data to MP3 format

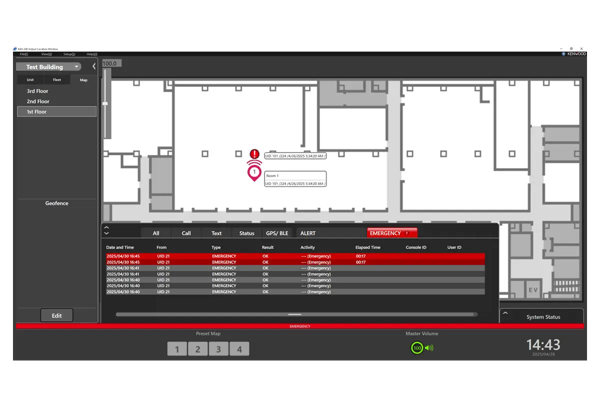

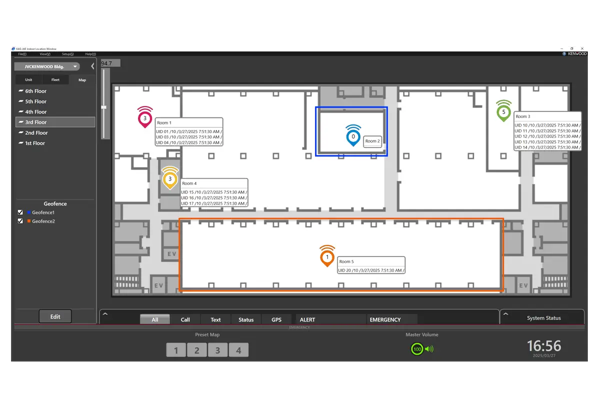

Software Indoor Location

Location of radios inside a building can be tracked efficiently using BLE Beacon and BLE Gateway

RF systems and a Bluetooth system to send BLE data to a location server

IP and Serial connections enabled for an NXDN Conventional/Trunking or DMR Conventional console.
Connectable repeaters and radios vary depending on the IP/Serial connection.

Target radios for Indoor Location limited to portables

Device location data is obtained in intervals or by an event (e.g. emergency)
