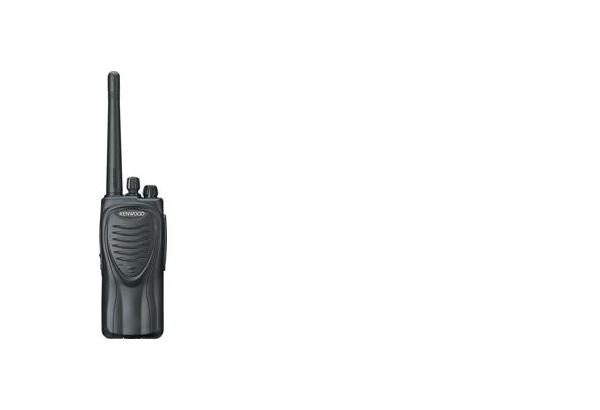

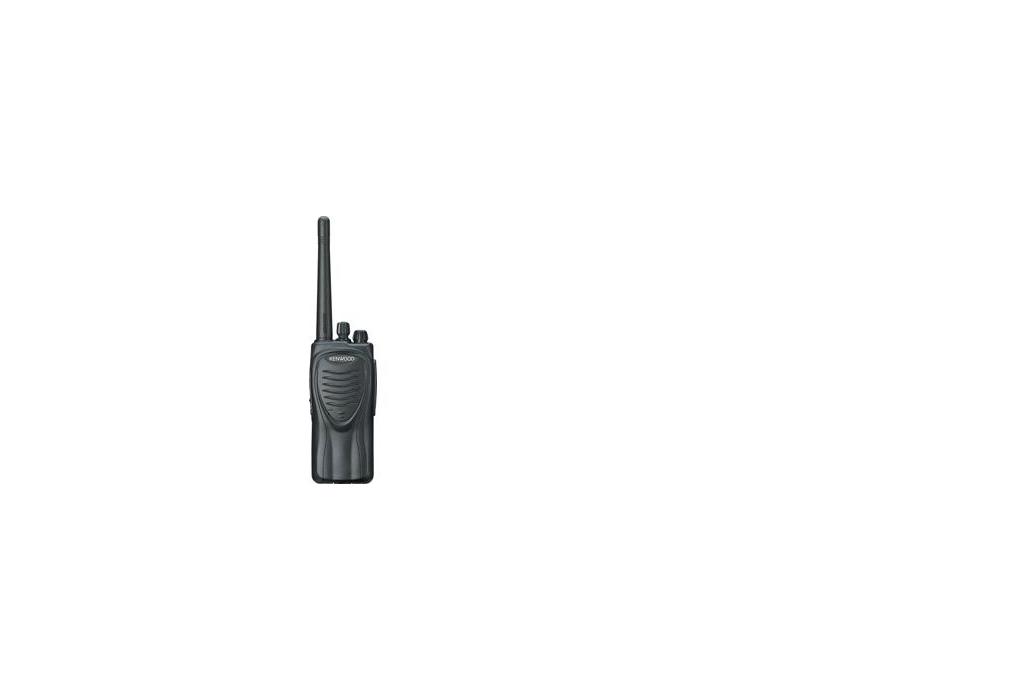

TK-2206M
VHF Compact Portable (non-EU use)
Discontinued model
Key Features
| Frequency Range: 136-174 MHz |
| 16 Channels |
| 5 Watt RF Output |
| Internal VOX Function |
| Voice Annunciation of Channel Number |
| Built-In Voice Scrambler |
| FleetSync plus DTMF, QT and DQT Signalling |
| PC Programmable |
PMR General Features
| Calling Alert | Yes |
| Compact Design | Yes |
| Companded Audio | Yes |
| DTMF Function | Yes |
| Embedded Message | Yes |
| Enhanced Kenwood Audio | Yes |
| FleetSync | Yes |
| Internal VOX Ready | Yes |
| Key Lock | Yes |
| Programmable Function Keys | 2 Programmable Function Keys |
| PTT ID | Yes |
| QT (CTCSS) / DQT (digital) | Yes |
| Remote Stun and Revive | Yes |
| Scan | Yes |
| SelCall Function | Yes |
| Selectable Microphone Gain | Yes |
| "Talk Back" Scanning Function | Yes |
| Time-Out Timer | Yes |
| Voice Guide Channel Confirmation | Yes |
| Voice Inversion Scrambler | Yes |
| VOX | Yes |
| Windows PC Programming and Tuning | Yes |
Options
Applicable Standards
| IP54 | Yes |
| IP55 | Yes |
| Measurement - EIA Standards | Yes |
| MIL-STD 810 F | Yes |
Technical Specifications
| Frequency Range - M Type | 136 - 174 MHz |
| Number of Channels | 16 |
| Channel Frequency Spread | 38 MHz |
| Channel Spacing | Wide: 30 kHz
Wide: 25 kHz Narrow: 15 kHz Narrow: 12.5 kHz |
| Antenna Impedance - 50 Ohm | Yes |
| Battery Life | With KNB-29N: 14 hours
With KNB-30A: 9 hours - 5-5-90 duty cycle with battery saver off - |
| Battery Voltage | 7.5 V DC ± 20% |
| Frequency Stability | ± 2.5 ppm (-30 °C to + 60 °C) |
| Operating Temperature Range | -30 °C to + 60 °C |
| PLL Channel Steps | 2.5 kHz/5.0 kHz/6.25 kHz/7.5 kHz |
| Dimensions | Radio only:
54 x 122 x 21.10 mm With KNB-29N: 54 x 122 x 33 mm With KNB-30A: 54 x 122 x 33 mm - Projections not included - |
| Weight (net) | Radio only: 160 g
With KNB-29N: 360 g With KNB-30A: 340 g |
Receiver Specifications
| Adjacent Channel Selectivity | 70 dB at 30 kHz
70 dB at 25 kHz 60 dB at 15 kHz 60 dB at 12.5 kHz |
| Audio Output | 500 mW with less than 10% distortion |
| Circuitry - Double Conversion Superheterodyne | Yes |
| Intermodulation | 65 dB at 30 kHz
65 dB at 25 kHz 60 dB at 15 kHz 60 dB at 12.5 kHz |
| Sensitivity - EIA 12 dB SINAD | 0.25 µV at 30 kHz
0.25 µV at 25 kHz 0.28 µV at 15 kHz 0.28 µV at 12.5 kHz |
| Spurious Reponse Rejection (Analogue) | 65 dB |
Transmitter Specifications
| RF Power Output (High/Low) | 5 W / 1 W |
| FM Noise (EIA) | 45 dB at 30 kHz
45 dB at 25 kHz 40 dB at 15 kHz 40 dB at 12.5 kHz |
| Modulation Distortion | Less than 5% |
| Spurious Response (EIA) | 65 dB |
